Description

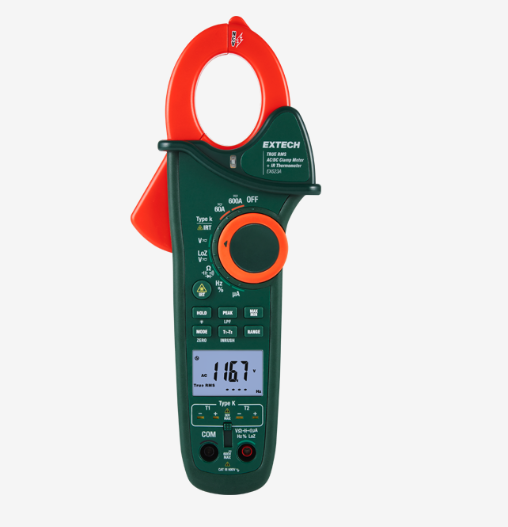

Extech EX623A 600A Dual Input Clamp Meter
Jual Extech EX623A 600A Dual Input Clamp Meter
The EX623A True RMS AC/DC clamp meter combines dual thermocouple inputs for T1, T2, and T1-T2 differential temperature measurement. It comes with a built-in infrared thermometer and a laser pointer for pinpointing hot spots and a Non-Contact Voltage (NCV) detector, so you can safely check for live electrical current. It features a DC micro-amp function that is ideal for flame rod measurements in HVAC systems, and its capacitance measurement capability extends up to 40 mF. The EX623A comes complete with test leads, a 9 V battery, Type K thermocouple, bead wire temperature probe, and a carrying case.
- ADVANCED SAFETY FEATURESBuilt-in non-contact infrared thermometer with laser pointer for locating hot spots and non-contact voltage (NCV) detector for checking for live electrical current
- ALL-IN-ONE TEMPERATURE MEASUREMENTSDual Type K temperature thermocouple for T1, T2 and T1-T2
- UPGRADED QUALITY FEATURES• True RMS for accurate measurements of AC voltage and current measures
• 600 A AC/DC Current
• Low Impedance (LoZ) to improve accuracy reduce the possibility of ghost voltages
• Low Pass Filter (LPF) to ensure more accurate readings in noisy electrical environments
• Inrush (100 ms) current feature to capture start-up current
GENERAL SPECIFICATIONS
- AC Current
- 0.01 A to 600 A
- AC Current Basic Accuracy
- ±(1.5% + 5d)
- AC Voltage
- 0.1 mV to 600 V
- Capacitance
- 0.001 nF to 40 mF
- DC Current
- 0.01 A to 600 A
- DC Microcurrent
- 0.1 µA to 600 µA
- DC Voltage
- 0.1 mV to 600 V
- Duty Cycle
- 0.5% to 99.0%
- Frequency
- 0.001 Hz to 100 kHz / Frequency (Clamp) 0.1 Hz to 400 Hz
- Jaw Size
- 32 mm (1.25 in)
- Non-Contact Voltage (NCV) Detector
- Yes
- Resistance
- 0.1 Ω to 60 M Ω
- Temperature (IR) Max Resolution
- -50°C to 270°C (-58°F to 518°F)
- Temperature (Type K) Max Resolution
- -50°C to 1000°C (-58°F to 1832°F)
Jual Extech EX623A Clamp Meter
Cemandiri distributor Extech Indonesia Jual Produk Extech EX623A Clamp Meter untuk seluruh wilayah indonesia. Untuk informasi penawaran harga dan konsultasi produk hubungi kami.
