Description

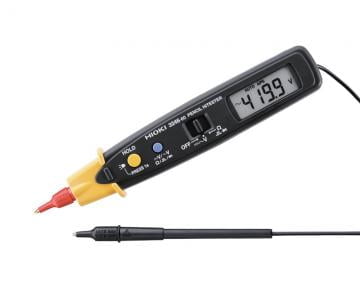

Jual Hioki 3246-60 PENCIL HiTESTER
Jual Hioki 3246-60
Pencil-style Pocket Digital Multimeter for General Electrical Maintenance, Testing and Hobbyists
The 3246-60 is a pencil-style digital multimeter for general electrical maintenance and testing, and includes a brilliant LED at the pen tip for a clear view of the measurement target.
Key Features
• Test lead and main unit in a single body
• Overload protection to 600 V at resistance or continuity functions
• LED light brightly illuminates test points
Basic specifications
Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year
Regarding DMM Accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the brochure for detailed accuracy information.
Regarding DMM Accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the brochure for detailed accuracy information.
| DC Voltage range | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. | |||||
|---|---|---|---|---|---|---|
| AC Voltage range | 4.199 V to 600 V, 4 ranges, Basic accuracy 50 – 500 Hz : ±2.3 % rdg. ±8 dgt. (Average rectified) | |||||
| Resistance range | 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. | |||||
| Continuity buzzer | Detection level 50 Ω ±40 Ω | |||||
| Diode check | Judges the right direction only, Open terminal voltage: 3.4 V or less, Testing current: 800 µA or less | |||||
| Auto power save | Available (cancel selectable) | |||||
| Display | Digital LCD, max. 4199 digits | |||||
| Sampling rate | 2.5 times/sec | |||||
| Power supply | Coin type lithium battery (CR2032) ×1, Continuous use: 150 hours (at DC V function), 30 hours (with light turned on for 10 seconds and off for 20 seconds per cycle and in DC V function) | |||||
| Dimensions and mass | 30 mm (1.18 in)W × 182 mm (7.17 in)H × 26.5 mm (1.04 in)D, 80 g (2.8 oz) | |||||
| Accessories | Instruction manual ×1, Coin type lithium battery (CR2032) ×1 (for trial purposes only), Sleeves (Red/ Black each 1) | |||||
