Description

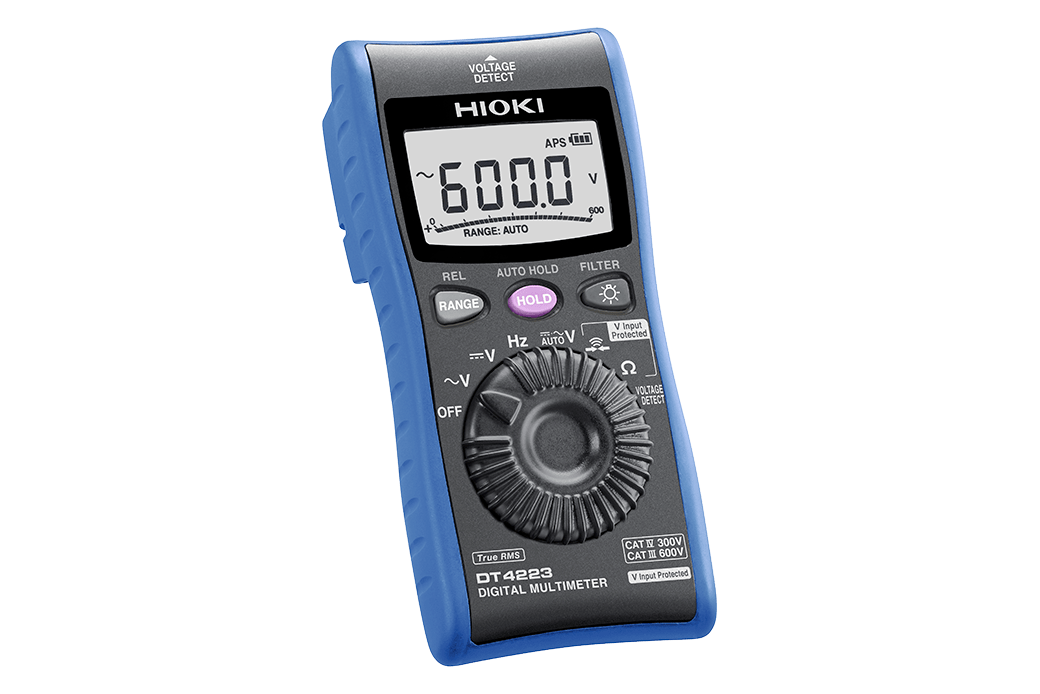

HIOKI DT4223 Digital Multimeter
Jual HIOKI DT4223 Digital Multimeter
DIGITAL MULTIMETER DT4223
Pocket DMM that Prevents False Circuit Breaker Trips using Proprietary Technology
The Hioki DT4200 Digital Multimeter Series consists of a diverse array of meters ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The Hioki DT4223 is a pocket-sized digital multimeter featuring an innovating circuit-breaker false trip prevention function to enhance testing safety and a built-in voltage detector, ideal for electrical inspections.
CAT IV 300 V, CAT III 600 V
Key Features
- Achieving a high level of safety in a compact body and lightweight design
- Circuit breaker false trip prevention function helps avoid accidents resulting from breakers that mistakenly trip due to incorrect input
- Resistance measurement and voltage detection function (DT4223)
- Robust design capable of withstanding a drop from a height of 1 m
- Test leads conveniently wrap around the back
- ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
- Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
- Broad -10°C (14°F) to 65°C (149°F) operating temperature range
- Display backlight
Basic specifications
Regarding DMM Accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the brochure for detailed accuracy information.
| DC Voltage range | 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt. | |||||
|---|---|---|---|---|---|---|
| AC Voltage range | 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz – 1 kHz Basic accuracy 40 – 500 Hz : ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3) |
|||||
| Resistance range | 600.0 Ω to 60.00 MΩ, 6 ranges Basic accuracy: ±0.9 % rdg. ±5 dgt. |
|||||
| Capacitance range | N/A | |||||
| Frequency range | AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges Basic accuracy: ±0.1 % rdg. ±2 dgt. |
|||||
| Continuity check | Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more Response time: 0.5 ms or more | |||||
| Diode test | N/A | |||||
| Voltage detection | 80 V to 600 V AC | |||||
| Other functions | Circuit-breaker false trip prevention function, filter function, display value hold, relative value display, auto-power save | |||||
| Display | Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph | |||||
| Display refresh rates | 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s ) | |||||
| Power supply | LR03 alkaline batteries ×1, Continuous use: 35 hours (backlight OFF) | |||||
| Dimensions and mass | 72 mm (2.83 in)W × 149 mm (5.87 in)H× 38 mm (1.50 in)D,190 g (6.7 oz) (including batteries and holster) | |||||
| Accessories | Test lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1 | |||||
