Description
Hioki PQ3100 Portable Power Quality Analyzer
Jual Hioki PQ3100 Portable Power Quality Analyzer
Jual Portable Power Quality Analyzer Hioki PQ3100
Hioki PQ3100 3-Phase 4-Wire Power Quality Analyzer Compliant to IEC61000-4-30 Class S Standards and On-screen Guide to Deliver Easy Setup and Testing
Hioki portable power meters and analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PQ3100 is a comprehensive but easy-to-use power quality analyzer for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues.

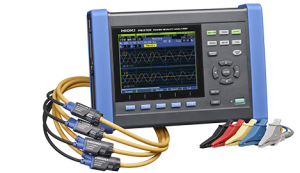

| PQ3100-94 | Kit includes 6000 A sensor × 4 and other options |
|---|
How to Use Power Quality Analyzers: Recording the Power Quality of a Power Grid
The Hioki PQ3100 Power Quality Analyzer measures all power parameters including voltage, current, power, harmonics, and flicker simultaneously along the same time axis, giving it the ability to capture all power anomalies such as intermittent power interruptions, voltage drops and frequency fluctuations while recording the power trend.
Key Features
- Record data including voltage, current, power, harmonics, and flicker simultaneously along a single time axis
- Measure up to 6000 A AC
- Capture all power anomalies, including instantaneous outages, voltage drops, and frequency fluctuations, while simultaneously recording trend data
- Quick Set: Easy-to-understand on-screen guide for measurement procedures
- Bundled PQ ONE application software makes it easy to create reports
- Record waveforms for up to 1 second before and 10 seconds after an anomaly occurs
- Accurately measure DC currents over extended periods of time (with an AC/DC auto-zero current sensor)
- Directly supply power to connected current sensors
- Send measured values to Hioki data loggers using a Bluetooth® wireless technology compatible adapter (LR8410 Link-compatible products), Ver. 2.0 and later
Basic specifications
| Measurement line type | Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel CH4 for voltage/current, (all channels AC/DC measurement) | |||||
|---|---|---|---|---|---|---|
| Voltage ranges | Voltage measurement: 1000.0 V rms or DC, Transient measurement 2.200 kV peak | |||||
| Current ranges | 50.000 mA AC to 5.0000 kA AC, 10.000 A DC to 2.0000 kA DC (depends on current sensor in use) |
|||||
| Power ranges | 50.000 W to 6.0000 MW (determined automatically based on current range in use) | |||||
| Basic accuracy | Voltage: ±0.2% of nominal voltage, Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy, Active power: DC ±0.5 % rdg. ±0.5 % f.s. + current sensor accuracy, AC ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy | |||||
| Measurement items | 1. Transient over voltage : 200 kHz sampling 2. Frequency cycle : Calculated as one cycle 3. Voltage (1/2) RMS, Current (1/2) RMS: one cycle calculation refreshed every half cycle 4. Voltage swell, Voltage dips, Voltage interruption, RVC (Ver.2.0 or later) : Voltage (1/2) RMS calculation 5. Inrush current : half-cycle calculation: Calculated as the current RMS value for current waveform data sampled every half-cycle. 6. Frequency 200 ms: Calculated as 10 or 12 cycles 7. 10-sec frequency: Calculated as the whole-cycle time during the specified 10 s period 8. Voltage waveform peak, Current waveform peak 9. Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Apparent energy, Reactive energy, Energy cost, Power factor, Displacement power factor, Voltage unbalance factor, Current unbalance factor 10. Voltage crest factor, Current crest factor 11. Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0 th to 50 th orders 12. Harmonic voltage-current phase angle: 1 th to 50 th orders 13. Total harmonic distortion factor (voltage/ current) 14. Inter harmonic (voltage/ current): 0.5 th to 49.5 th orders 15. K Factor (multiplication factor) 16. IEC Flicker, Δ V10 Flicker |
|||||
| Record | Maximum recording interval: 1 year, Maximum number of recordable events: 9999 × 365 days | |||||
| Interfaces | SD/SDHC memory card, RS-232C (for communication/ LR8410 link), LAN (HTTP server/ FTP/ Send e-mail), USB 2.0 (for communication) | |||||
| Logger connectivity | Sends measured values wirelessly to logger by using a Bluetooth® wireless technology serial conversion adapter. (Supported devices: Hioki LR8410 Link-compatible loggers), Ver. 2.0 and later | |||||
| Display | 6.5-inch TFT color LCD (640 × 480 dots) | |||||
| Power supply | AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A), Battery pack Z1003 (Continuous use: 8 hr, Charging time: Max. 5 hr 30 m with AC adapter) | |||||
| Dimensions and mass | 300 mm (11.81 in)W × 211 mm (8.31 in)H × 68 mm (2.68 in)D, 2.5 kg (88.2 oz) (including battery pack) | |||||
| Accessories | Instruction manual ×1, Measurement guide ×1, Voltage cord L1000-05 ×1 set (Red/Yellow/Blue/Gray/Black, Alligator clip ×5, Spiral tube ×5), Color clip (for identifying clamp sensor color) ×1 set, Spiral tube ×5, AC adapter Z1002 ×1, Strap ×1, USB cable (1 m 3.28 ft length) ×1, Battery pack Z1003 ×1, PQ ONE (software, CD) ×1 | |||||
cemandiri jual portable power quality analyzer , jual hioki pq3100, jual pqa hioki.
Power Quality Analyzer
Kian disingkat menjadi PQA adalah sebuah alat analisa kualitas kelistrikan yang mampu mendeteksi anomali atau kejanggalan pada lini kelistrikan ditempat anda, dengan mengetahui lebih dini permasalahan kelistrikan yang ada dapat mencegah terjadinya kebocoran arus dan hal lain yang tidak diinginkan.
Jual Power Quality Analyzer
Untuk pembelian produk power quality analyzer ini anda bisa membelinya dari perusahaan distributor power quality analyzer atau PQA seperti cemandiri.com dengan barang hioki yang sangat lengkap dan terpercaya. Adapun produk unggulan PQA dari power quality analyzer hioki adalah item HIOKI PQ3198 yang sudah sangat dikenal secara performa dan kualitasnya.
Harga Power Quality Analyzer
Cemandiri menawarkan harga power quality analyzer dan kompetitif dan terbaik dengan layanan garansi dan after sales yang terpercaya. Anda juga bisa menghubungi kami untuk didatangkan dengan team sales engineer berpengalaman dari kami untuk datang dan presentasi seputar alat yang sedang anda butuhkan.
