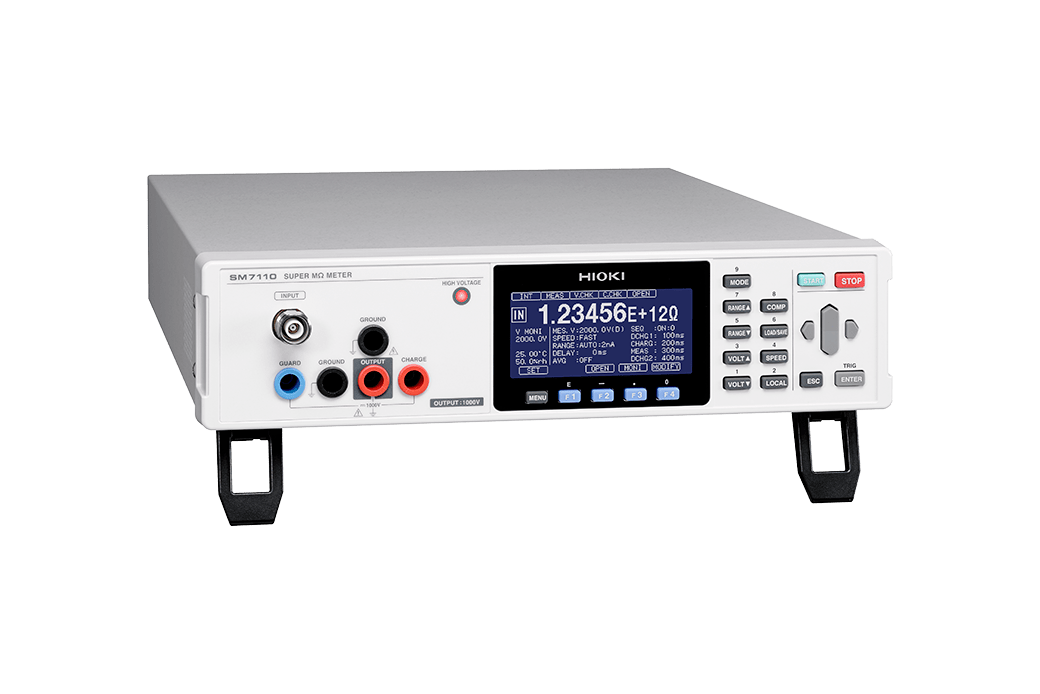

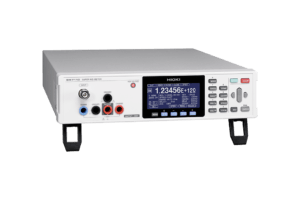

Hioki SM7110 Super Megohm Meter
Jual Hioki SM7110 Super Megohm Meter Info Harga Spesifikasi dan Katalog
The Hioki SM Series Super Megohm Meters are high resistance and ultra low current inspection devices with a 0.1 fA resolution to offer precise testing on production lines. The SM7110 is designed for use in evaluating and testing the performance of electronic components used in products such as smartphones and hybrid vehicles, and supports measurement voltage output of up to 1000 V.
Key Features Hioki SM7110
- 300 times better noise resistance
- Max. 1000 V output : SM7110
- Max. 2 × 10^19 Ω display
- Min. 0.1 fA resolution
- Built-in EXT I/O, RS-232C, GP-IB and USB
- Flexible, Multipurpose Design, High Resistance Meter/Electrometer/Picoammeter/IR Meter
- Measure resistance of materials by combining with optional electrode
Model No. (Order Code)
| SM7110 | 1 ch, 1000 V output |
|---|
Basic specifications
| Number of channels | 1 ch | |||||
|---|---|---|---|---|---|---|
| DC current measurement | 20 pA range (0.1 fA resolution), Accuracy: ±(2.0 % of rdg. +30 dgt.) 200 pA range (1.0 fA resolution), Accuracy: ±(1.0 % of rdg. +30 dgt.) 2 nA range (10 fA resolution), Accuracy: ±(0.5 % of rdg. +20 dgt.) 20 nA range (100 fA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.) 200 nA range (1 pA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.) 2 μA range (10 pA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.) 20 μA range (100 pA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.) 200 μA range (1 nA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.) *2 mA range (1 nA resolution), Accuracy: ±(0.5 % of rdg. +30 dgt.) (1) Measurement speed SLOW2 (internal integration time 13PLC) (2) At a temperature of 23 °C ±5 °C with humidity of 85% rh (3) 2 mA range (Measurement speed FAST only) |
|||||
| Resistance measurement capabilities | 1 × 10 ^3 Ω to 2 × 10 ^19 Ω Note: Resistance measurement accuracy is defined by the current range accuracy and voltage setting accuracy. |
|||||
| Setting voltage range (Accuracy) |
0.1 to 100.0 V, 100 mV resolution, Accuracy: ±0.1 % of setting ±0.05% f.s. 100.1 to 1000 V, 1 V resolution, Accuracy: ±0.1 % of setting ±0.05% f.s. |
|||||
| Current Limiter | 0.1 to 250.0 V: 5/ 10/ 50 mA, 251 to 1000 V: 5/ 10 mA, to 2000 V:1.8 mA | |||||
| Measurement time setting | Delay: 0 to 9,999 ms | |||||
| Functions | Comparator, averaging, self-calibration, jig Capacity open correction, cable length correction, surface resistivity, volume resistivity, voltage monitor, contact check | |||||
| Program function | 10 types of discharge, charge, measure and measurement sequence discharge patterns can be programmed. | |||||
| Display | LCD (8 lines of 30 characters), with backlight, High voltage warning indicator | |||||
| Interfaces | USB, RS-232C, GP-IB, EXT I/O (NPN/PNP can be switched) | |||||
| Power supply | 100 to 240V AC , 50/60 Hz, 45 VA | |||||
| Dimensions and mass | 330 mm (12.99 in)W × 80 mm (3.15 in)H × 450 mm (17.72 in)D, 5.9 kg (208.1 oz) | |||||
| Accessories | Power cord ×1, Instruction manual ×1, CD-R (Communications command instruction manual, USB driver) ×1, EXT I/O male connector ×1, Short plug ×1 | |||||
Jual Hioki SM7110 Super Megohm Meter
PT. Central Elektrindo Mandiri atau cemandiri menjual produk supermegohm meter Hioki SM7110. Cemandiri merupakan agen resmi / authorized distributor hioki di Indonesia. Untuk informasi dan keterangan produk lebih lanjut hubungi team sales kami.
