Description

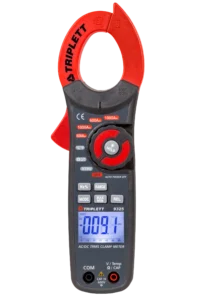

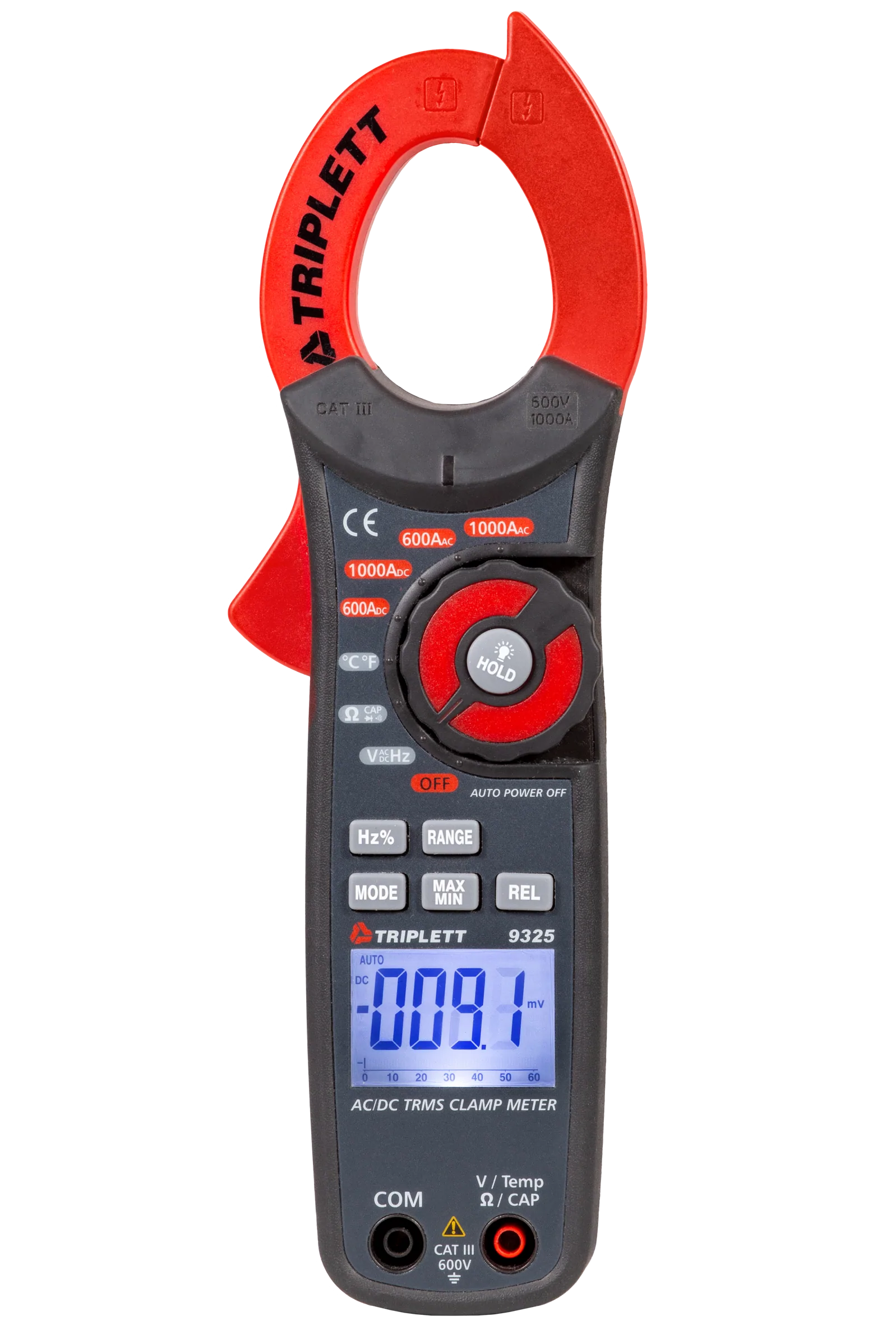

Triplett 9325 Clamp On Meter 3 3/4 Digit TRUE RMS 1000A
Jual Triplett 9325 Clamp On Meter 3 3/4 Digit TRUE RMS 1000A
Deskripsi Teknis Produk Triplett 9325
9325-NIST Comes with Certificate of traceability to NIST standards
Please add 3-5 days lead-time for the NIST calibration process
Triplett 9325 True-RMS AC/DC Clamp Meter Digital is designed to measure AC/DC current, AC/DC voltage, resistance, continuity, diode testing, temperature, and capacitance. The Triplett 9325 features True-RMS measurements for environments with distortion, AC/DC current measurements up to 1000A, attractive backlit display, 3 year limited warranty, and more. The Triplett 9325 True-RMS AC/DC Clamp Meter Digital is a very feature packed unit great for security, home theater, electrical, HVAC, you name it. With AC/DC current measurements up to 1000A and TRMS measurements, the Triplett 9325 is a truly capable multimeter.
Fitur Produk Triplett 9325
- 28 Ranges with True RMS measurement
- AC/DC Current measurements up to 1000A
- Temperature, Frequency, Capacitance measurement and built-in NCV Detector
- CAT III 600V safety rating, ncludes test leads, Type K Temperature probe, 9V battery and case
- 3 year warranty
- Lead time for NIST Certified products is 5-7 business days
- Upon order placement, please provide the company name that should appear on the certificate. Without this information, we will not be able to provide a certificate of calibration.
Spesifikasi Triplett 9325
| Specifications | 9305 | 9325 |
| True RMS/Averaging | Averaging | True RMS |
| Display Counts | 4000 | 6000 with analog bargraph |
| Clamp Size | 1.2″ (30mm) | 1.5″ (40mm) |
| AC Current | 40.00 to 400A | 0.1 to 1000A |
| ACA Accuracy | ±2.8% | ±2.8% |
| DC Current | — | 0.1 to 1000A |
| AC Voltage | 1mV to 600V | 1mV to 600V |
| DC Voltage | 1mV to 600V | 1mV to 600V |
| Resistance | 1Ω to 40MΩ | 0.1Ω to 60MΩ |
| Temperature | -4 to 1400°F (-20 TO 760°C) | -4 to 1400°F (-20 TO 760°C) |
| Capacitance | 0.01nF to 100µF | 0.01nF to 4000µF |
| Frequency | 10Hz to 10kHz | 0.01Hz to 10kHz |
| Duty Cycle | — | 0.1 to 99.9% |
| Safety Category | CAT III-600V | CAT III-600V |
| Dimensions | 8.0 x 2.25 x 1.25″ (200 x 66 x 37mm) | 9.5 x 2.75 x 1.5″ (232 x 77 x 39mm) |
| Weight | 0.5 lbs. (205g) | 11.2oz (271g) |
Jual Triplett 9325 True RMS AC/DC Clamp Meter
Cemandiri distributor Triplett Indonesia Jual Produk Triplett 9325 True RMS AC/DC Clamp Meter untuk seluruh wilayah indonesia. Untuk informasi penawaran harga dan konsultasi produk hubungi kami.
Digital Clamp Meter
Dapatkan penawaran harga produk digital clamp meter termurah dan terpercaya hanya di cemandiri.com Dipercaya menjadi authorized distributor berbagai merek ternama yang sudah terjamin kualitasnya. Lakukan permintaan penawaran harga terbaik dari produk digital clamp meter yang anda butuhkan , sebelum mengambil keputusan untuk melakukan pembelian digital clamp meter anda bisa menghubungi team sales engineer kami untuk melakukan presentasi seputar produk digital clamp meter di tempat anda. Untuk katalog produk bisa anda dapatkan dilaman produk digital clamp meter di situs kami cemandiri.com Untuk pertanyaan lanjut seputar produk digital clamp meter bisa chat kami via whatsapp.
Harga Jual Digital Clamp Meter Terbaru
Belanja produk digital clamp meter dengan harga yang kompetitif dengan penawaran harga terbaik , berbagai jenis digital clamp meter bisa anda dapatkan di cemandiri.com pusat alat ukur ternama dari brand brand dunia. Untuk mendapatkan penawaran harga bisa melalui email ke sales@cemandiri.com untuk respon permintaan harga cepat bisa hubungi team sales kami via whatsapp. Semua produk digital clamp meter dari kami bergaransi resmi dari brand principal. Kualitas dan harga terbaik adalah layanan prioritas dari kami untuk anda sekalian.
