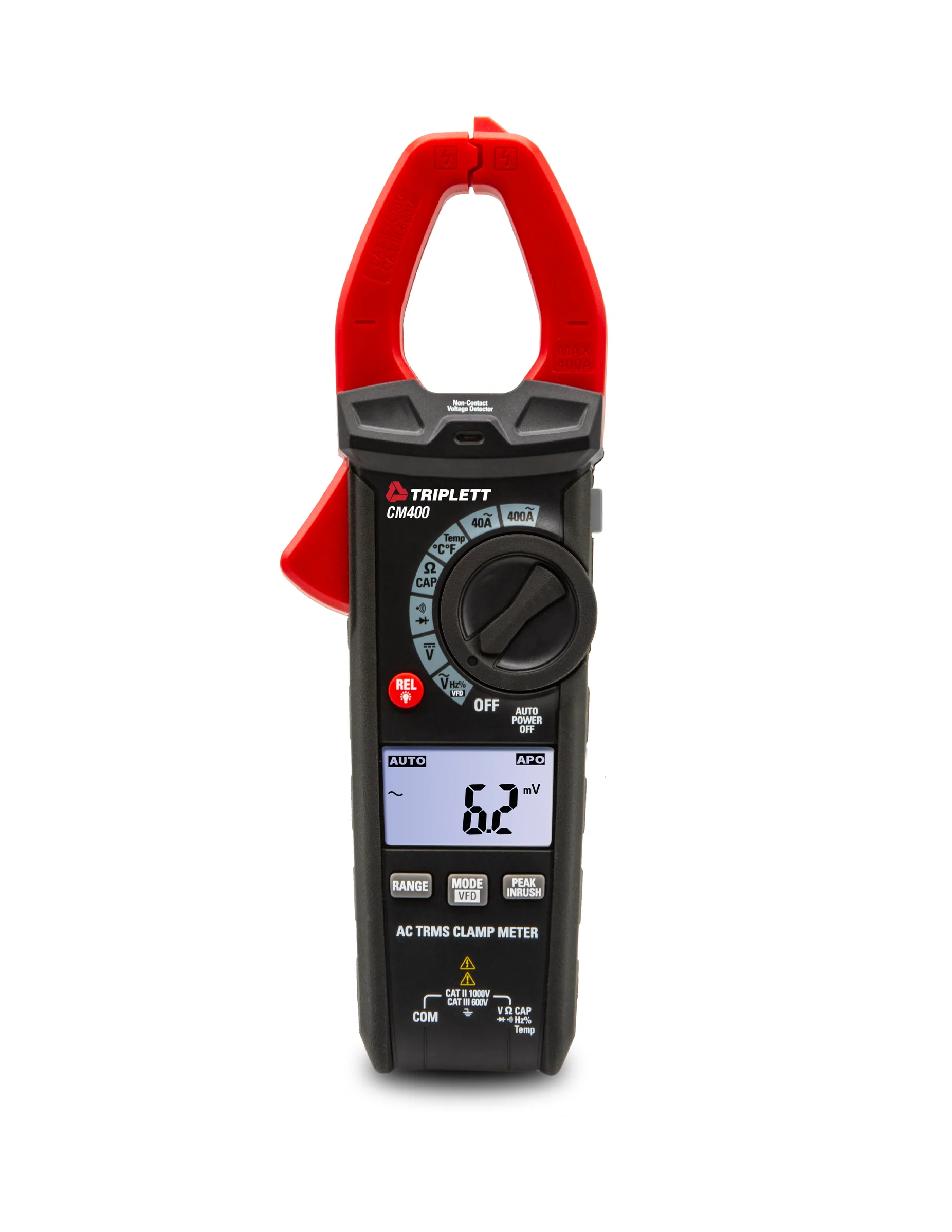

Triplett CM400 True RMS AC Clamp Meter 400A
Jual Triplett CM400 True RMS AC Clamp Meter 400A
Deskripsi Teknis Produk Triplett CM400
The Triplett Model CM400 True RMS Clampmeter can measure AC current up to 400A without breaking the circuit by clamping around a single conductor. This saves time and the circuit will not be damaged. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms.
Additional measurements include Resistance, Capacitance, Frequency, Temperature, Diode Test, and Continuity. Measurements can read on the 4000 count backlit LCD. It has an Inrush current function that captures the instantaneous surge (inrush) current when power equipment is turned on.
Features include: Peak voltage capture with min/max, NCV Detector with LED, Relative/DC zero function, Auto power off, and a built-in flashlight. Data Hold freezes the display for easy viewing. CAT III-600V safety category. Includes 3 AAA batteries, test leads, Type K thermocouple probe, and carrying case. 1-year warranty.
CM400-NIST Comes with Certificate of traceability to NIST standards
Please add 3-5 days lead-time for the NIST calibration process
Fitur Produk Triplett CM400
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- Captures the instantaneous surge (inrush) current when power equipment is turned on
- 1.2″ (30mm) clamp jaw
- Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives
- Peak voltage measurement with Min/Max
- Data Hold freezes the display
- Relative Mode for making comparisons to a stored reference value
- Auto power off with disable
- Built-in Flashlight
- Includes test leads, Type K thermocouple bead probe, 3 AAA batteries, and carrying case
- 1 year warranty
Spesifikasi Produk Triplett CM400
| CM400 | CM450 | |
| True RMS | ✓ | ✓ |
| Display counts | 4000 count | 4000 count |
| AC Current | 400A | 400A |
| ACA Accuracy | ±2.5% | ±2.5% |
| DC Current | — | 400A |
| AC/DC Voltage | 1000V | 1000V |
| Resistance | 40MΩ | 40MΩ |
| Temperature | -4 to 1832°F (-20 to 1000°C) |
-4 to 1832°F (-20 to 1000°C) |
| Capacitance | 100mF | 100mF |
| Frequency | 100kHz | 100kHz |
| Duty Cycle | 20.0 to 80.0% | 20.0 to 80.0% |
| Continuity | <50Ω | <50Ω |
| Lo Pass Filter (LPF) | Yes | Yes |
| NCV Detector | >90V | >90V |
| Inrush Current | 100ms | 100ms |
| Safety Category | CAT III-600V | CAT III-600V |
| Dimensions | 8.8 x 3 x 1.6″ (223.8 x 76.5 x 39.4mm) |
8.8 x 3 x 1.6″ (223.8 x 76.5 x 39.4mm) |
| Weight | 9.5oz (268.3g) | 9.8oz (277.4g) |
