Description

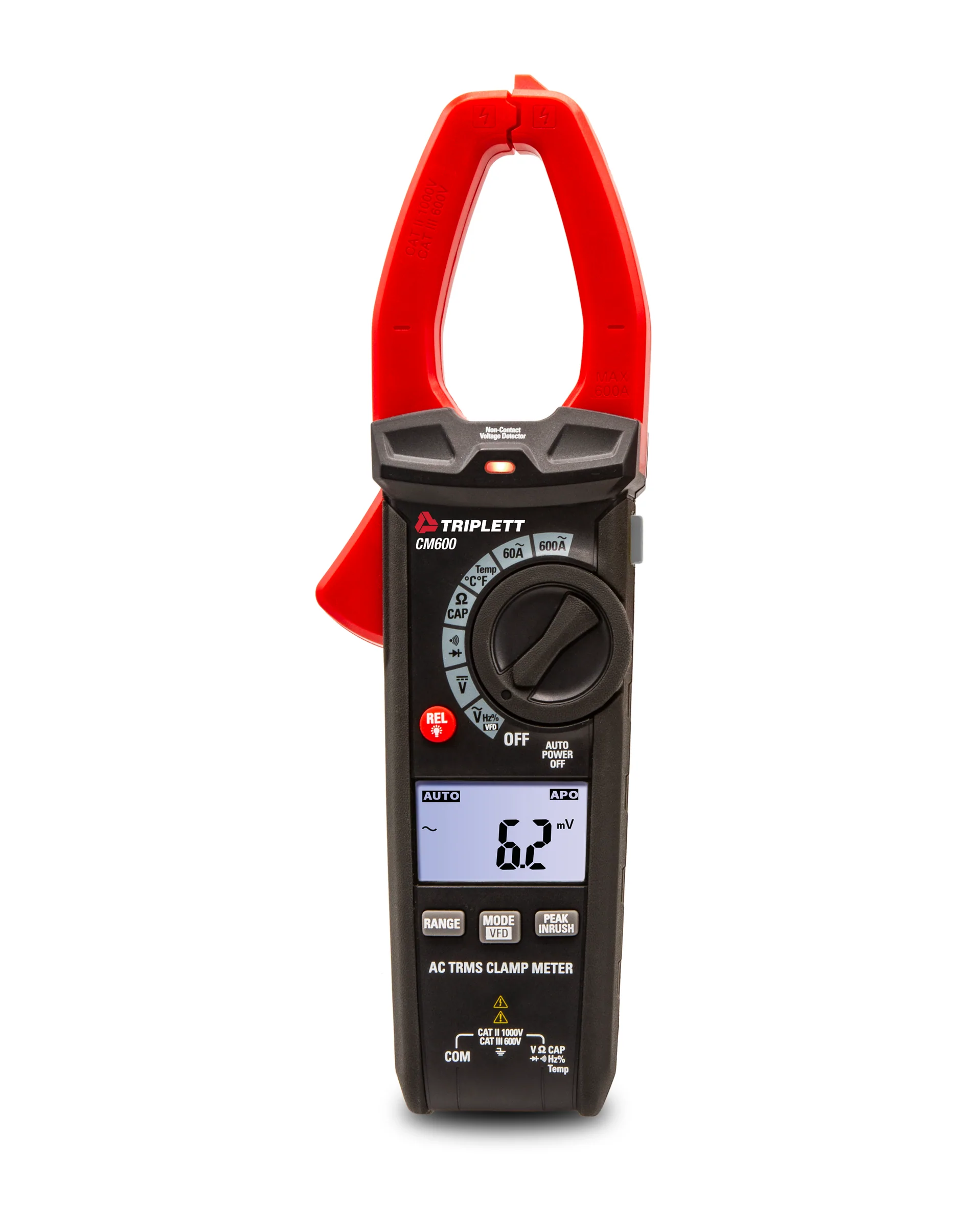

Triplett CM600 600A TRUE RMS AC Clamp Meter
Jual Triplett CM600 600A TRUE RMS AC Clamp Meter
Deskripsi Teknis Produk Triplett CM600
The Triplett Model CM600 True RMS Clampmeter can measure AC current up to 600A without breaking the circuit by clamping around a single conductor. This saves time and the circuit will not be damaged. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms.
Additional measurements include Resistance, Capacitance, Frequency, Temperature, Diode Test, and Continuity. Measurements can read on the 4000 count backlit LCD. It has an Inrush current function that captures the instantaneous surge (inrush) current when power equipment is turned on.
Features include: Peak voltage capture with min/max, NCV Detector with LED, Relative/DC zero function, Auto power off, and a built-in flashlight. Data Hold freezes the display for easy viewing. CAT III-600V safety category. Includes 3 AAA batteries, test leads, Type K thermocouple probe, and carrying case. 1-year warranty.
Fitur Produk Triplett CM600
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- Captures the instantaneous surge (inrush) current when power equipment is turned on
- 1.2″ (30mm) clamp jaw
- Built-in Non-Contact Voltage Detector with LED
- Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives
- Peak voltage measurement with Min/Max
- Data Hold freezes the display
- Relative Mode for making comparisons to a stored reference value
- Auto power off with disable
- Built-in Flashlight
- Includes test leads, Type K thermocouple bead probe, 3 AAA batteries, and carrying case
- 1 year warranty
Spesifikasi Produk Triplett CM600
| CM600 | CM650 | |
| True RMS | ✓ | ✓ |
| Display counts | 6000 count | 6000 count |
| AC Current | 600A | 600A |
| ACA Accuracy | ±2.5% | ±2.5% |
| DC Current | — | 600A |
| AC/DC Voltage | 1000V | 1000V |
| Resistance | 40MΩ | 40MΩ |
| Temperature | -4 to 1832°F (-20 to 1000°C) | -4 to 1832°F (-20 to 1000°C) |
| Capacitance | 100mF | 100mF |
| Frequency | 100kHz | 100kHz |
| Duty Cycle | 20.0 to 80.0% | 20.0 to 80.0% |
| Continuity | <50Ω | <50Ω |
| Lo Pass Filter (LPF) | Yes | Yes |
| NCV Detector | >90V | >90V |
| Inrush Current | 100ms | 100ms |
| Safety Category | CAT III-600V | CAT III-600V |
| Dimensions | 8.8 x 3 x 1.6″ (223.8 x 76.5 x 39.4mm) | 8.8 x 3 x 1.6″ (223.8 x 76.5 x 39.4mm) |
| Weight | 10oz (282.8g | 10.3oz (290.6g) |
Jual Triplett CM600 True RMS AC Clamp Meter
Cemandiri distributor Triplett Indonesia Jual Produk Triplett CM600 True RMS AC Clamp Meter untuk seluruh wilayah indonesia. Untuk informasi penawaran harga dan konsultasi produk hubungi kami.
Digital Clamp Meter
Dapatkan penawaran harga produk digital clamp meter termurah dan terpercaya hanya di cemandiri.com Dipercaya menjadi authorized distributor berbagai merek ternama yang sudah terjamin kualitasnya. Lakukan permintaan penawaran harga terbaik dari produk digital clamp meter yang anda butuhkan , sebelum mengambil keputusan untuk melakukan pembelian digital clamp meter anda bisa menghubungi team sales engineer kami untuk melakukan presentasi seputar produk digital clamp meter di tempat anda. Untuk katalog produk bisa anda dapatkan dilaman produk digital clamp meter di situs kami cemandiri.com Untuk pertanyaan lanjut seputar produk digital clamp meter bisa chat kami via whatsapp.
Harga Jual Digital Clamp Meter Terbaru
Belanja produk digital clamp meter dengan harga yang kompetitif dengan penawaran harga terbaik , berbagai jenis digital clamp meter bisa anda dapatkan di cemandiri.com pusat alat ukur ternama dari brand brand dunia. Untuk mendapatkan penawaran harga bisa melalui email ke sales@cemandiri.com untuk respon permintaan harga cepat bisa hubungi team sales kami via whatsapp. Semua produk digital clamp meter dari kami bergaransi resmi dari brand principal. Kualitas dan harga terbaik adalah layanan prioritas dari kami untuk anda sekalian.
